- CA series amplifier
-

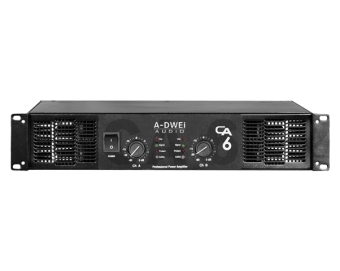

CA-6 2-channel 300W Power Amplifier
Continuous Power (8Ω):
300W*2 Ch
Continuous Power (4Ω):
450W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
700W
SNR:
>95dB
Input Sensitivity:
0.775V/1.0/1.4
Circuitry Type:
Type AB
Harmonic Distortion:
<0.05% @ 8Ω 1kHz
Damping Factor:
>350
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
483*462*88 mm (2U)
Net Weight/Gross Weight:
26kg/13kg
-

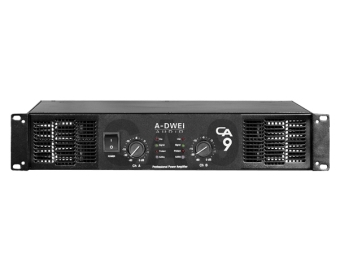

CA-9 2-channel 400W Power Amplifier
Continuous Power (8Ω):
400W*2 Ch
Continuous Power (4Ω):
600W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
1000W
SNR:
>95dB
Input Sensitivity:
0.775V/1.0/1.4
Circuitry Type:
Type AB
Harmonic Distortion:
<0.05% @ 8Ω 1kHz
Damping Factor:
>350
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
483*462*88 mm (2U)
Net Weight/Gross Weight:
30kg/15kg
-

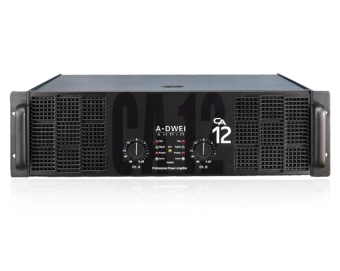

CA-12 2-channel 600W Power Amplifier
Continuous Power (8Ω):
600W*2 Ch
Continuous Power (4Ω):
900W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
1100W
SNR:
>95dB
Input Sensitivity:
0.775V/1.0/1.4
Circuitry Type:
Type AB
Harmonic Distortion:
<0.05% @ 8Ω 1kHz
Damping Factor:
>350
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
483*462*133 mm (3U)
Net Weight/Gross Weight:
40kg/25kg
-

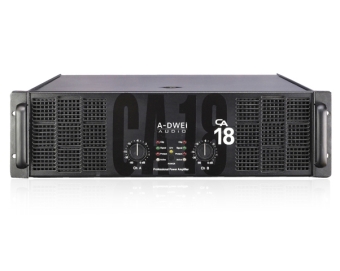

CA-18 2-channel 800W Power Amplifier
Continuous Power (8Ω):
800W*2 Ch
Continuous Power (4Ω):
1200W*2 CH
Pulsed Power (2Ω):
-
Bridging Power (8Ω):
2400W
SNR:
>95dB
Input Sensitivity:
0.775V/1.0/1.4
Circuitry Type:
Type AB
Harmonic Distortion:
<0.05% @ 8Ω 1kHz
Damping Factor:
>350
Conversion Rate:
30V/us
Input Impedance:
20KΩ – balanced input / 10KΩ – unbalanced
Dimension (W*D*H):
483*462*133 mm (3U)
Net Weight/Gross Weight:
44kg/27kg
